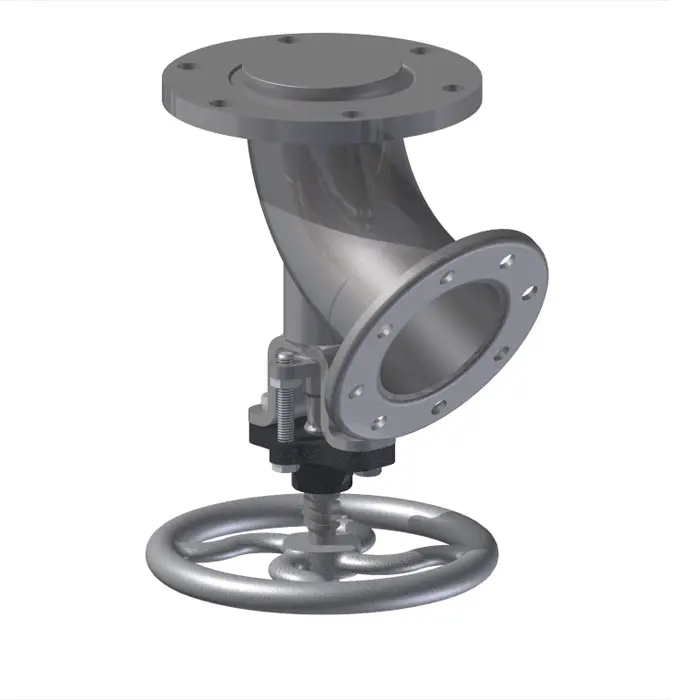

FV863MSM

3″ 60DEG FLUSH VLV FLG

• Complete Drainage
• Opens Into Tank
• Simplified Design
• Outside Screw & Yoke

With a metal-to-metal seat, the Betts Flush Valve is designed to handle heavy, viscous material. The fabricated design provides greater strength with less weight, full direct flow, complete drainage, and replaceable parts. The outside screw and yoke keep threads free of product, maintaining a smooth operation.

Temperature Rating: Steel or Stainless 500°F. max.

NOTE: This valve must be mounted in a vertical position. Horizontal mounting will not allow the disc to seat properly. To close the valve turn the Handwheel in a direction as shown in the last valve image. (clockwise rotation as viewed facing Handwheel). During this closing operation, Handwheel will move outward exposing more of the stem threads.

Betts Flush Valve
