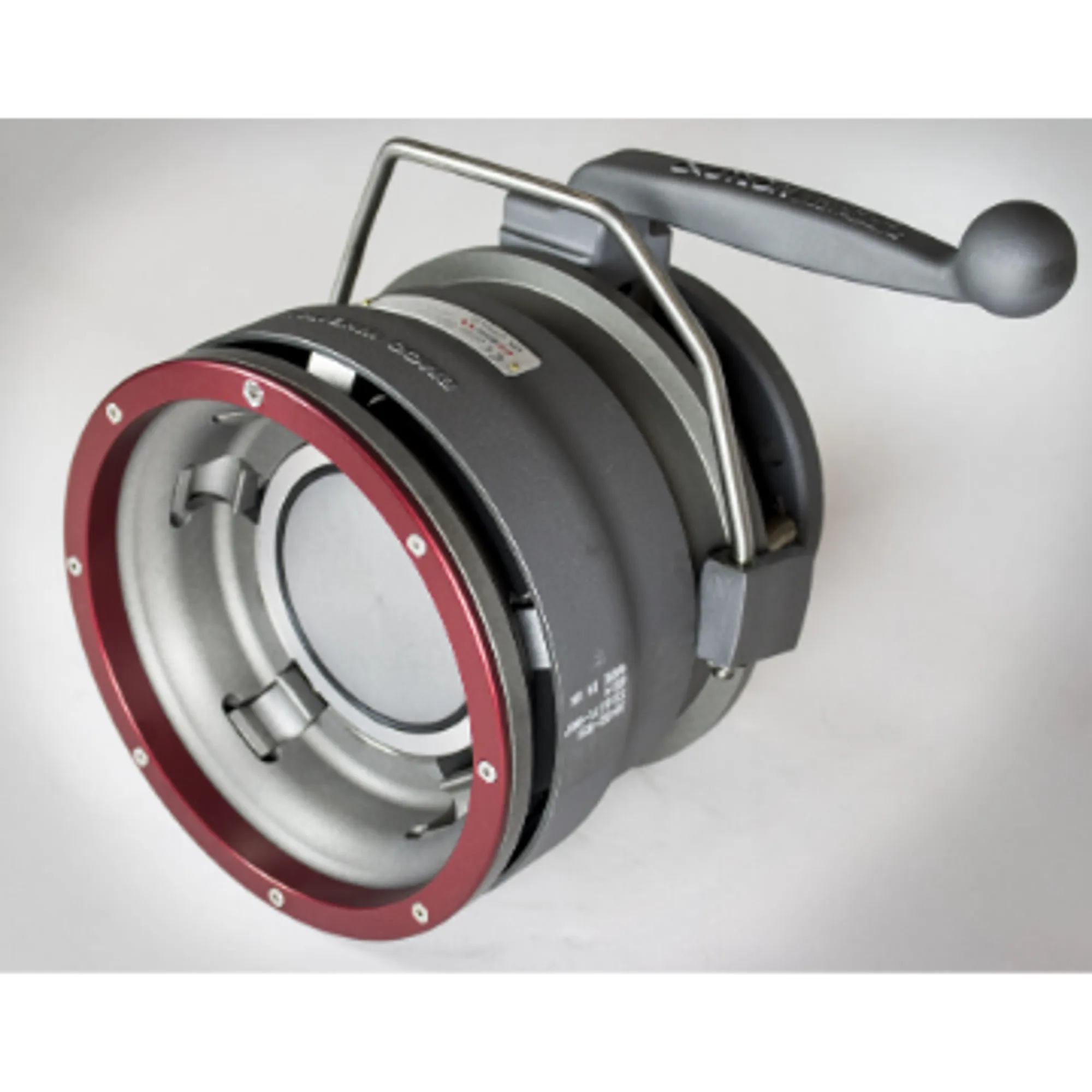

J0452-051

Rack coupler snap on Viton

Features & Benefits

The J0542’s ergonomic design, which includes an optional integrated pump with filter element, virtually eliminates leakages and prioritises ease of operation. It comes equipped with EMCO Wheaton’s forged aluminium lever as standard and is built with a hard-coated anodised body for reliability in the field. In-situ nose seal replacement also means the J0452 is very easy to maintain, even after heavy repeat use.

Much like all EMCO Wheaton API couplings, this model offers minimal pressure drop and a high flow rate. It also adheres to recognised international standards and industry codes of practice, including Canadian CRN approval.

Technical Information

The J0452 has a total weight of 9.79 kg (21.5 lbs) without the optional integrated pump and a maximum working pressure of 16 bar (240 psi). It connects to a 4” tank truck flange and shipped with X seals. Side or top handles are also available.

Variants include:

Buna
Viton
Low-temperature
Viton variant
