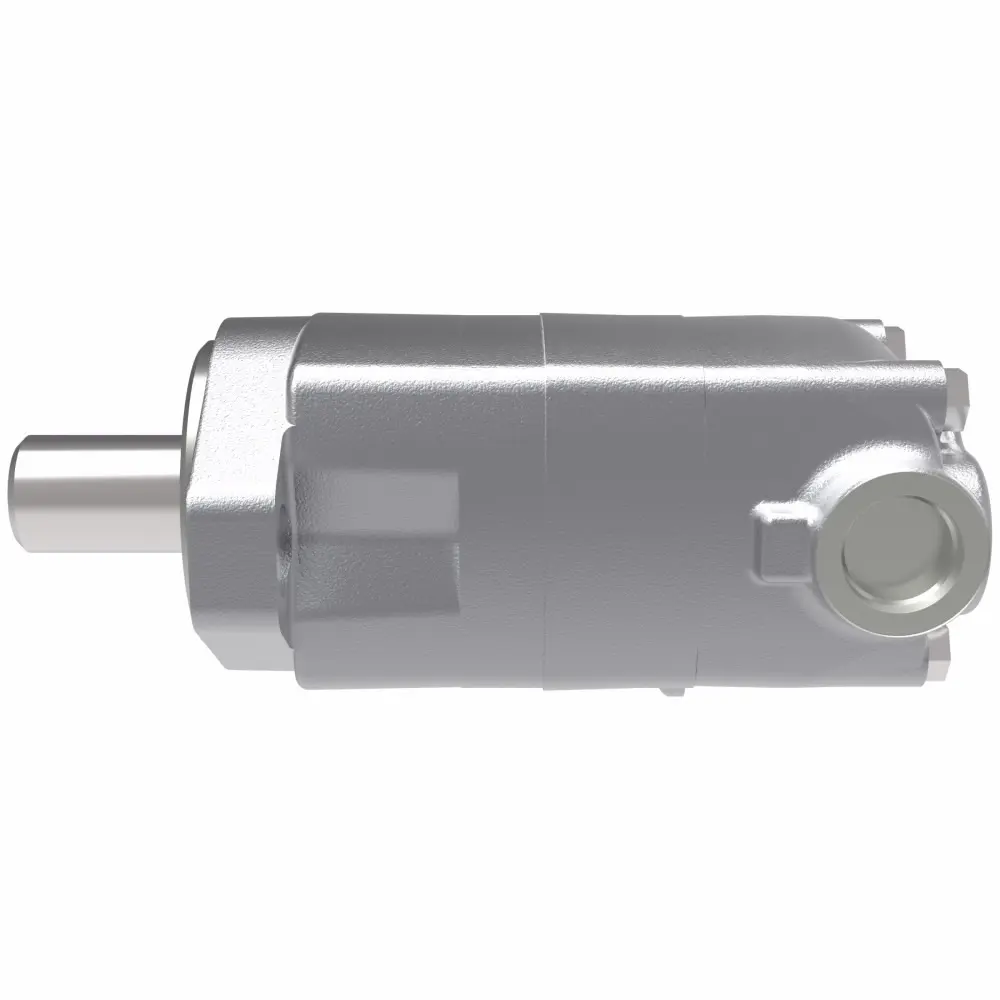

6.2 CI Char Lynn hydraulic motor Blackmer

  • Three-zone design for longer life and true bi-directionality
  • Bearings that meet the highest standards of the industry
  • Options to optimize performance in every application
  • Integrated crossover relief valve option
  • Two-bolt flange: SAE A with 3-1/4″ pilot diameter
  • Case drain: 7/16″-20 UNF-2B O-ring port size 4
Series 2000 – Standard
Displacement 6.20 in³/r
Mounting Type 2-Bolt Flange – 3.25 in Pilot – SAE A
Shaft Type Straight
Maximum Operating Temperature 180 °F
Output Shaft Size 1-1/4 in Straight – Straight Key
Overall Height 4.33 in
Overall Length 8.74 in
Overall Width 5.16 in
Seal Type Standard
Operation Mode Continuous Rating – Motor May Be Run Continuously At These Ratings. / Intermittent Operation – 10 Percent Of Every Minute / Peak Operation – 1 Percent Of Every Minute
Drain Connection Size .4375-20 Unf-2b O-ring Port Size -4
